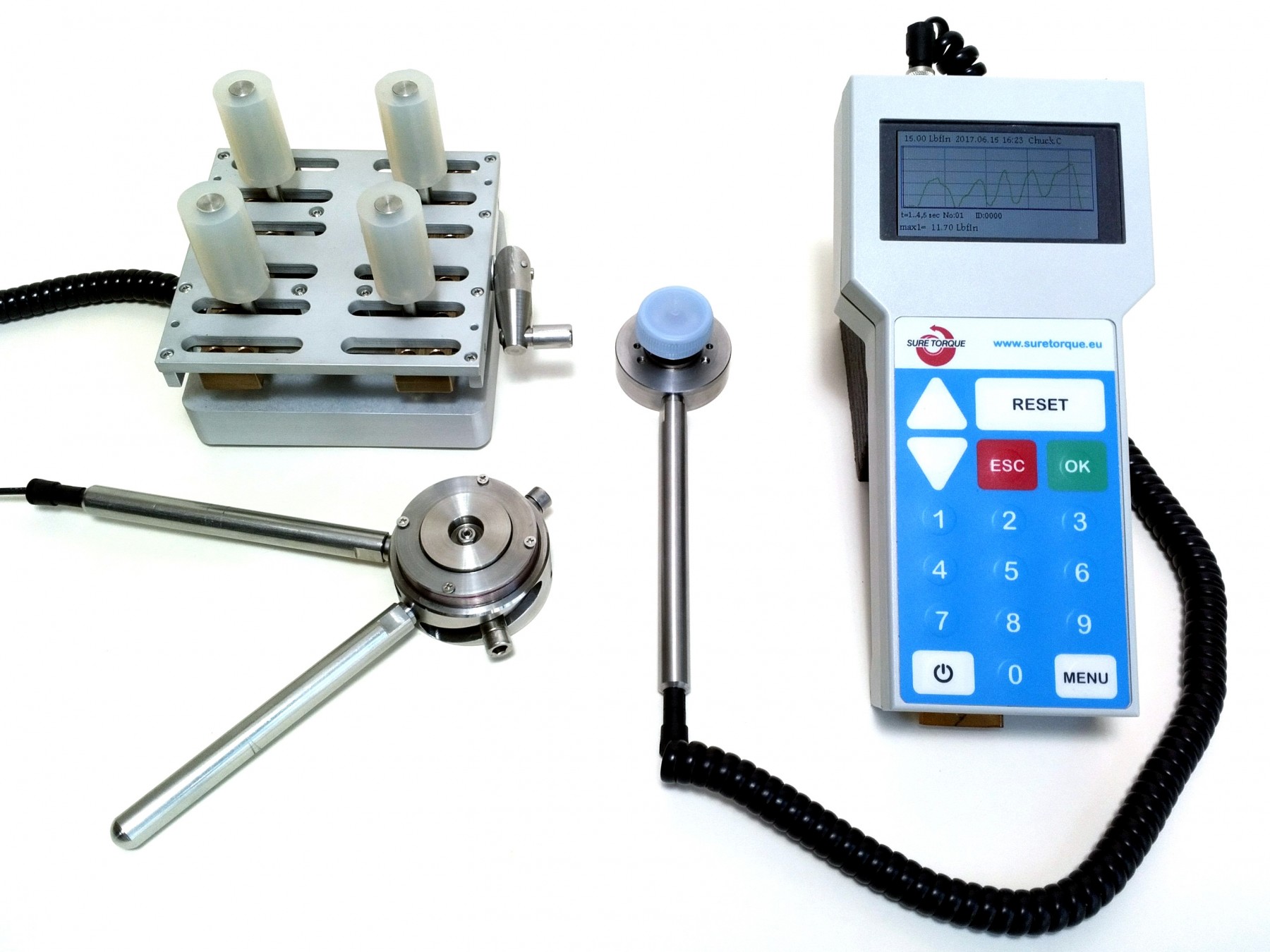

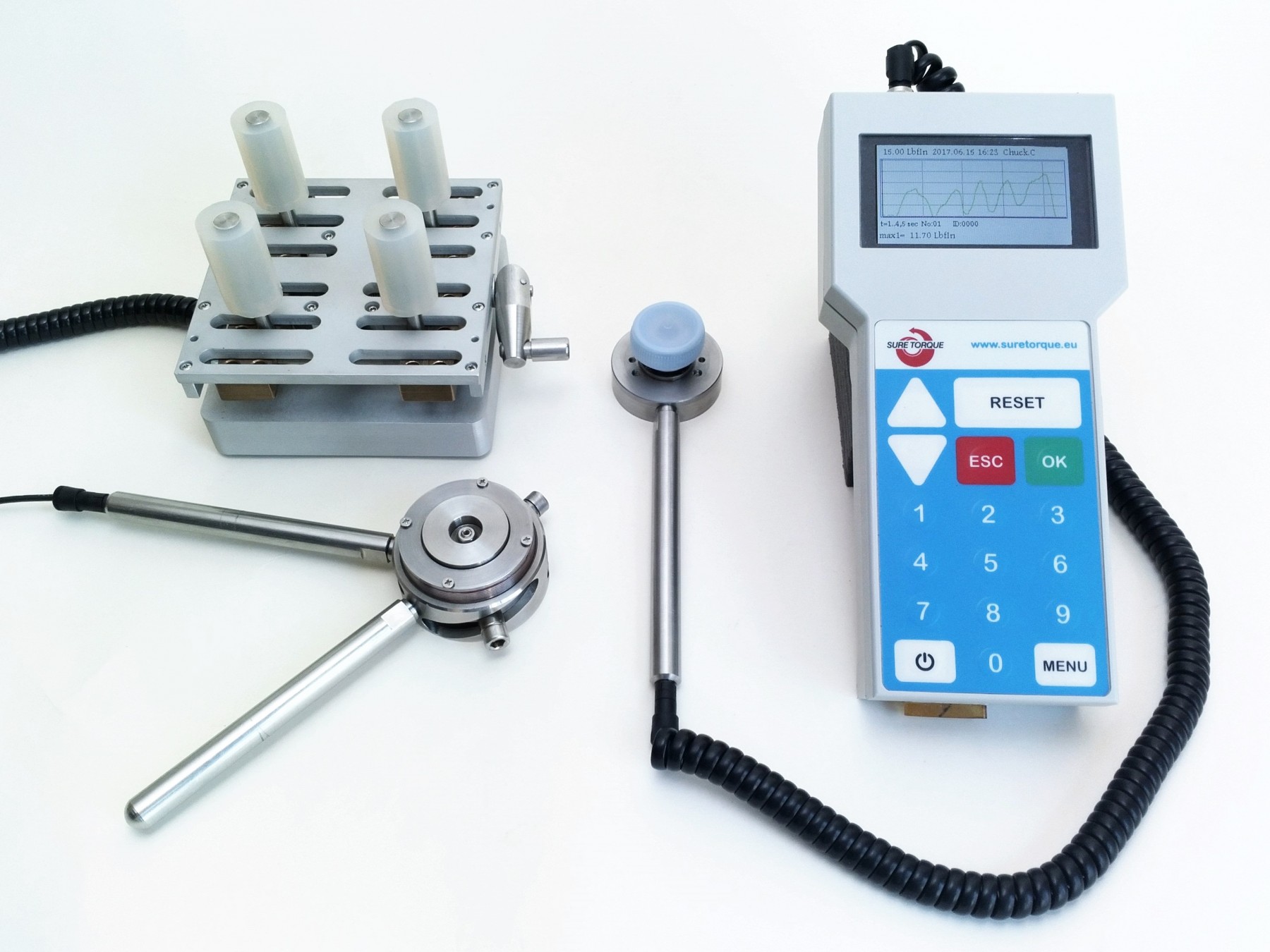

Sure Torque ST-H6 is a universal instrument, that can be used for all torque and force measuring purposes in the bottling industry, as:
- capper head chuck calibration
- capper head topload spring calibration
- cap removal torque measurement.

Several measuring heads can be connected to the handheld unit for the different applications:

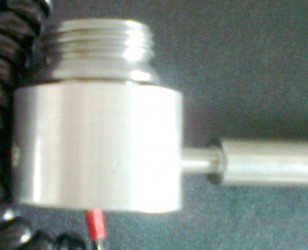

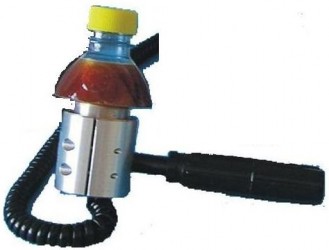

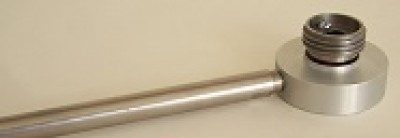

- ST-H-C chuck torque calibrators: This units enable the capping torque measurement directly on the capper machine, without the disassembly of the chucks. (See the most common standard neck finish types here!)
- ST-H-T topload force unit: This unit enables the capper head’s topload spring force measurement directly on the capper machine, without the disassembly of the chucks.
- ST-H-D desktop unit: With this unit the instrument can be used as a normal cap torque tester to release the closure torque on the bottles.

Industries: Beverage, Food, Pharmaceutical, Packaging

 Areas: Maintanance, Laboratory, Production

 Applications:

Capper machine testing:
- Capper chuck torque testing
- Capper head Top Load force testing

Closure torque testing:
- Release torque
- Bridge torque
- Incremental torque
- Application torque

Special testing applications:
- Crimp force testing on crimped vials or aerosols
- Any custom fore or torce or torque testing with connectable load cells

/Video was made of the previous (ST-H4) model/

• Universal instrument for maintanance and quality control applications
• Capper chuck torque and top load force measuring on the capper, without disassambling the capper head
• The handheld unit can handle up to 5 different measuring units with different calibration, so one handheld unit can be used both with all the measuring devices.
• Fulfills the torque and force testing requirements of both the maintenance and the production line QC in the bottling industry.
• Displaying actual and peak torque value, the time-torque (time-force) diagram
• Custom ID code can be recorded to each measurement
• Data’s can be saved to SD-card or pc with USB or RS-232 connection.

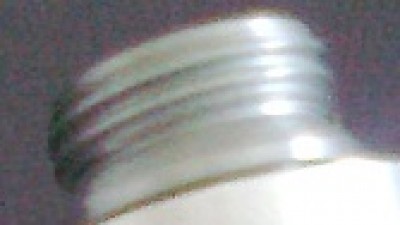

• Chuck calibrator unit can be equipped with several change parts for different cap diameters/kinds. The change part can easily be changed with just 1 or 2 screws.
• Both kind of ST-H-D desktop closure torque testers are shipped with the normal Sure Torque flat surface clamping table
• The ST-H-T Top load force measuring unit measures the top load spring force of the capper head. It is an expandable force meter which travels 10 mm upwards against the spring and measures the force during their travel. The measures of the unit: Ø60 x 27-37 mm.

Full specification - pdf

Capper chuck testing solutions video presentation:
